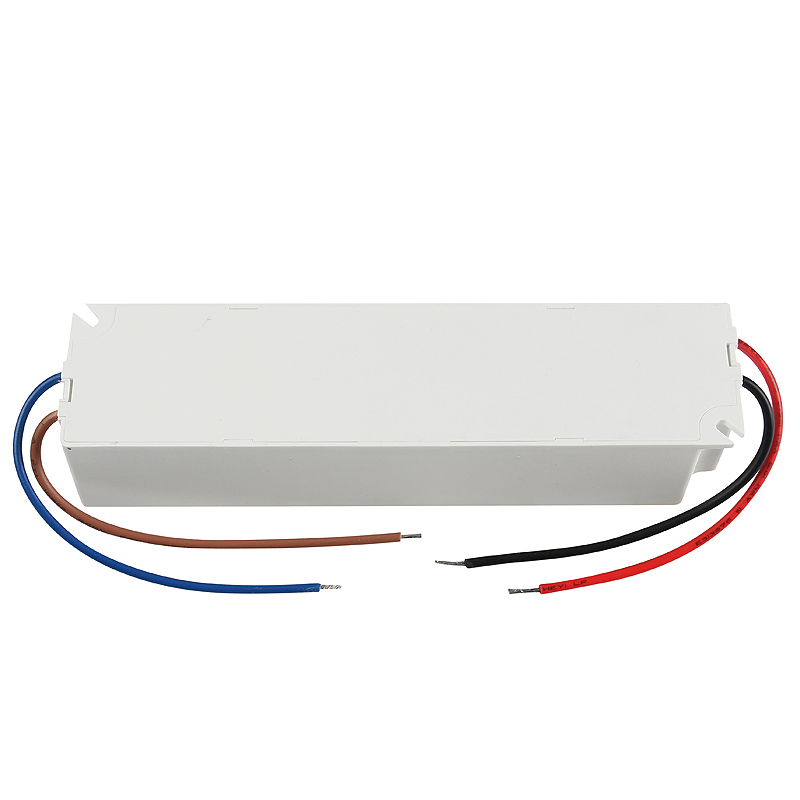

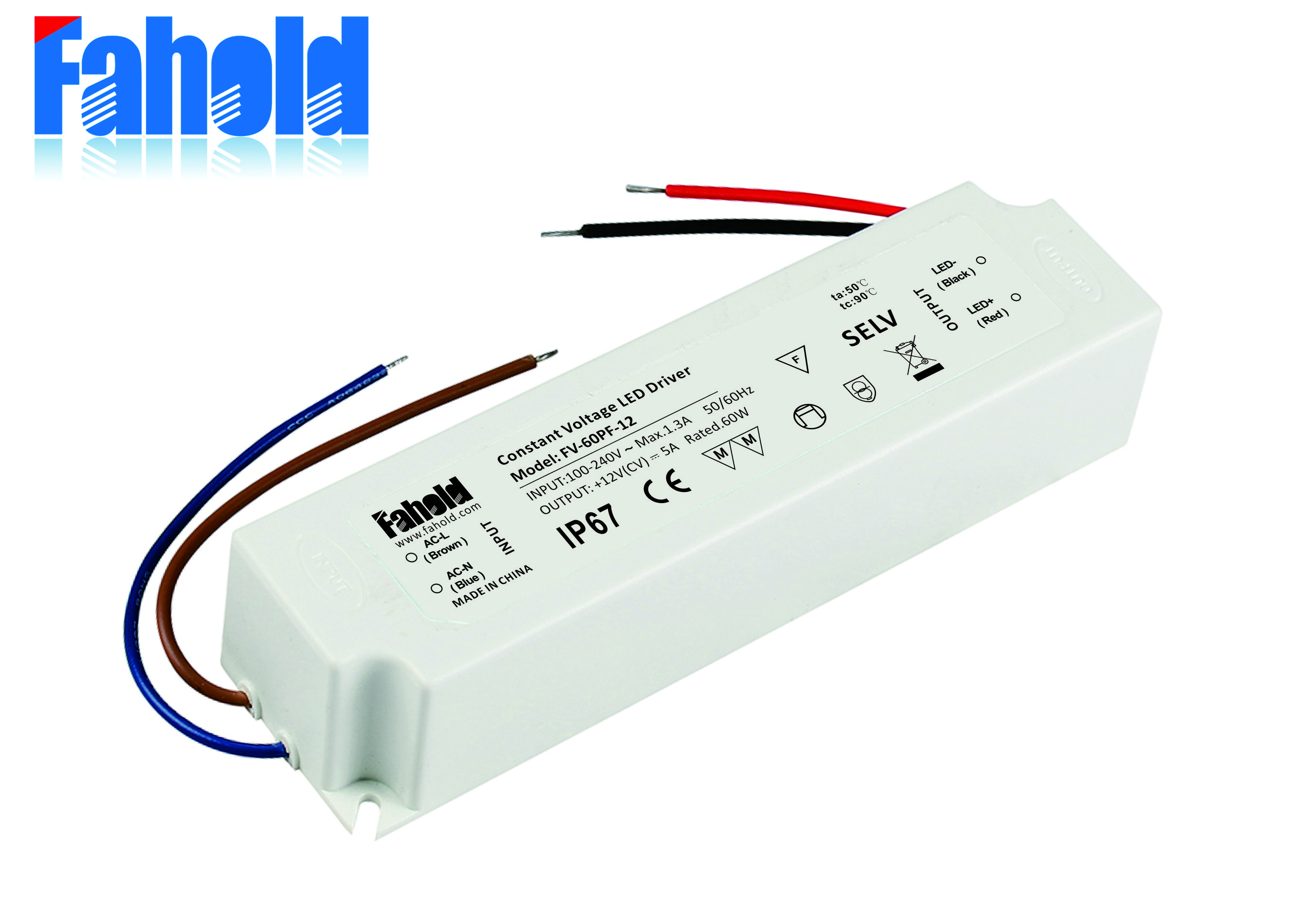

60W 12V 24V alto pf conductor led

Model No.

PF-40-5

PF-60-12

PF-60-24

Output

DC voltage

5V

12V

24V

Rated current

8A

5A

2.5A

Load current range

0~8A

0~5A

0~2.5A

Rated power

40W

60W

60W

Ripple&noise

80mV Vp-p

100mV Vp-p

120mV Vp-p

Adjustable voltage

-

-

-

Regulation accuracy

±1%

±1%

±1%

Load regulation accuracy

±0.5%

±0.5%

±0.5%

Source regulation accuracy

±0.5%

±0.5%

±0.5%

Start,rise time

1500ms,30ms@230VAC;2000ms,30ms@115VAC at full load

Hold up time

30ms@230VAC,15ms@115VAC at full load

Input

AC input range

88~264VAC/120~373VDC

Frequency range

47~63Hz

Efficiency

85%

89%

91%

Input current

0.95A@115VAC,0.56A@230VAC

Inrush current

45A/230VAC cold start

Leakage current

<0.75mA/240VAC

Protection

Over load

Rated load 110%~150%

Hiccup mode, Auto-recovery

Over output voltage

5.8~6.7V

13.8~16.2V

26.5~33.6V

Shut off the output voltage, auto-recovery

Over temperature

By PWM IC OTP function

Ambient

Operation temperature

-30℃~+70℃(Reference to derating curve)

Operation humidity

20%~90% RH No condensation

Storage temperature & humidity

-40℃~+85℃  10~95% RH

Temperature coefficient

±0.03%/℃(0~50℃)

Vibration resistance

10~500Hz,5G 10minutes/cycle,each X,Y,Z 60minutes

Safety STD

Safety STD

TUV EN60950-1,EN60335-1,EN61558-1/-2-16,CCC GB4943

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC, O/P-FG:1KVAC

Insulation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC/25℃/70% RH

EMI

EN55022(CISPR22),GB9254(class B),EN55014,EN61000-3-2,-3

Other

MTBF

650K hrs,MIL-HDBK-217F(25℃)

Dimension

166*42*34mm

Weight

0.29KG
